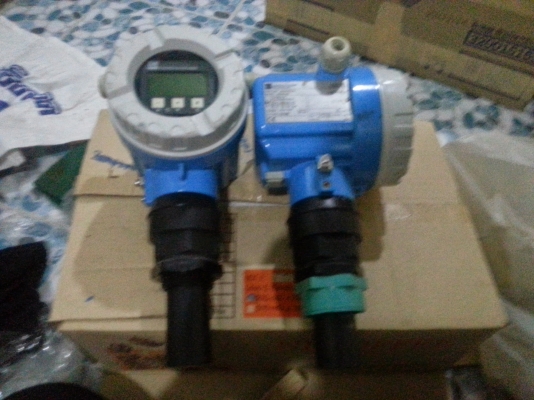

E+H Ultrasonic Level Sensor เครื่อววัดระดับ

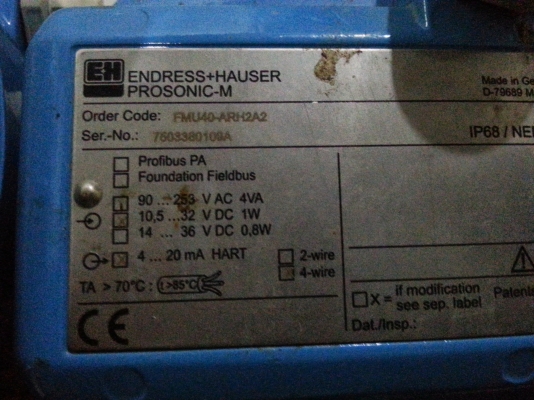

E+H FMU40 วัดได้ 5 เมตร - 5 m. - 4-20 mA. - 4 wire Ultrasonic Level Measurementprosonic M FMU 40/41/42/43 Compact transmitters for non-contact level measurement of fluids, pastes and coarse bulk materials Application • Continuous, non-contact levelmeasurement in fluids, pastes, sullages and coarse bulk materials • Flow measurement in open channelsand measuring weirs • System integration via:– HART (standard), 4...20mA – PROFIBUS PA – Foundation Fieldbus • Maximum measuring range:– FMU 40: – 5 m in fluids – 2 m in bulk materials – FMU 41: – 8 m in fluids – 3,5 m in bulk materials – FMU 42: – 10 m in fluids – 5 m in bulk materials – FMU 43: – 15 m in fluids – 7 m in bulk materials Features and benefits • Simple, menu-guided on-site operationwith four-line plain text display • Envelope curves on the on-site displayfor simple diagnosis • Easy operation, diagnosis andmeasuring point documentation with the supplied ToF Tool operating program. • Alignable IP 68 aluminium housing • optional remote display and operation • Installation possible from thread G 1½“or 1½ NPT upwards • Integrated temperature sensor for timeof-flightcorrection. Accurate measurements, even for temperature changes • Linearisation function (up to 32 points)for measured value output in any unit of length, volume or flow rate • Non-contact measurement method,therefore almost independent of product properties
