กระบอกไฮดรอลิก enerpac rc-53

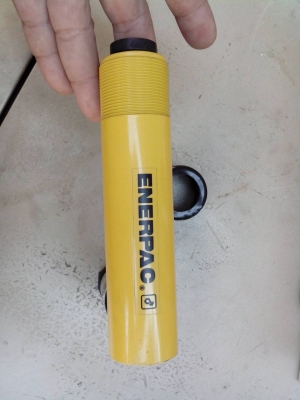

กระบอกไฮดรอลิก ENERPAC RC-53 HYDRAULIC CYLINDER 3" STROKE 10,000PSI MAX. กระบอกไฮดรอลิก ENERPAC RC-53 HYDRAULIC CYLINDER 3" STROKE 10,000PSI MAX. ของใหม่พร้อมสาย (สายไม่ใช่ของ ENERPAC ใช้สายในนี้แปลง) ติดต่อ xxx-xxx-xx24 แสดง Product Description This Enerpac RC-53 single-acting alloy steel hydraulic cylinder with 5-ton capacity has a round body with one port and spring-return of the single piston rod with 3" stroke for use in general-purpose applications in any position. The single-acting hydraulic cylinder uses liquid pumped through its single port for rod extension and a pretensioned internal spring for expedited rod retraction to produce continued movement. A built-in stop ring prevents the plunger from extending beyond the stroke length, assists in absorbing side loads, and can endure the full capacity of the cylinder. The plunger wiper helps inhibit contamination in the cylinder, and the removable grooved plunger saddle covers the plunger mounting threads and protects the plunger during lifting operations. The GR2 bearings reduce wear and help prevent jamming and rod over-extension by absorbing eccentric load stresses. The port is a quick-connect CR-400 female coupler for use with a CH-604 male coupler (sold separately), and the included dust cap covers the port when not in use. The high-strength alloy steel body has a baked enamel finish for corrosion resistance in harsh environments. Specifications Cylinder capacity 5 tons (4.9 maximum) Stroke length 3.00 inches 1Effective area 0.99 square inches Oil capacity 2.98 cubic inches Cylinder bore diameter 1.13 inches Collapsed height 6.50 inches Extended height 9.50 inches Outside diameter 1.50 inches Weight 3.3 lb. Enerpac manufactures high-pressure tools and equipment for industrial applications. The company, founded in 1910, is headquartered in Menomonee Falls, WI.
