E+H Pressure Transmitter

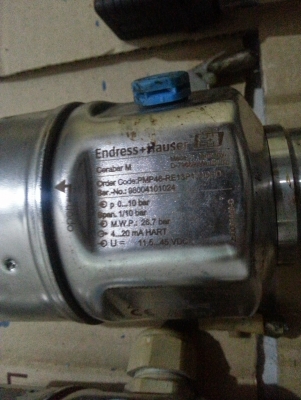

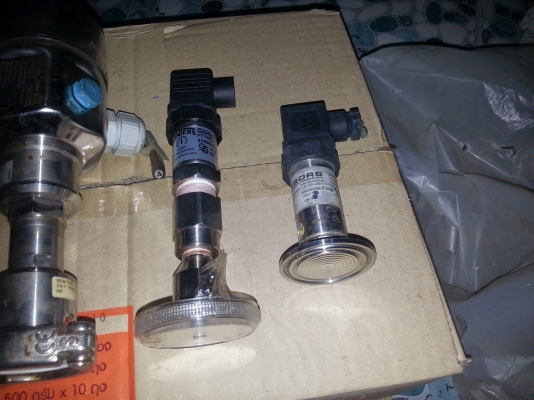

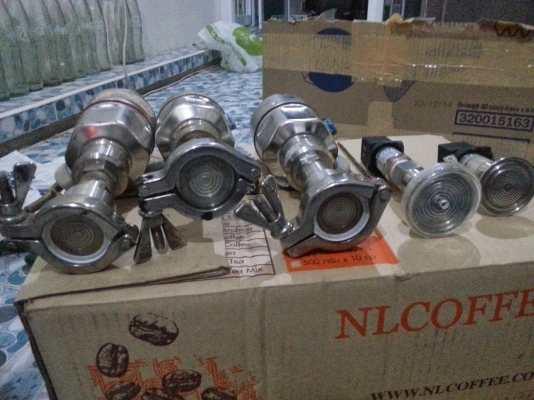

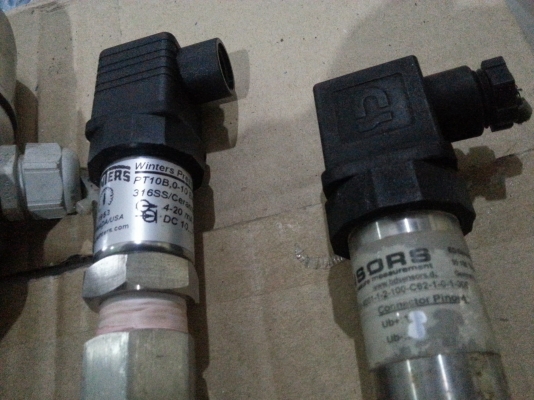

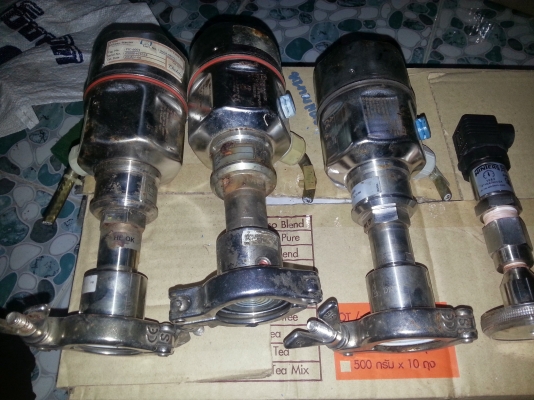

E+H MPM46 วัดได้ 0-10 bar มี 3 ตัวๆละ900.- แถมตัวเล็กให้อีก 2 ตัว - 0-10 bar - 4-20 mA. - 2 wire - 11.5-45VDC Cerabar M PMC41/45, PMP41/45/46/48Pressure transmitters With ceramic and metal sensors Overload-resistant and function-monitored With analog, HART or PROFIBUS PA electronics Application The Cerabar M pressure transmitters measure gauge pressure and absolute pressure in gases, steams, liquids and dusts. Thanks to the modular instrument concept, Cerabar M suits all areas of process engineering. All process connections are available as hygienic connections, threaded connections, separators and flanges (also as diaphragm seals). Your benefits • Accuracy– Measured error better than 0.2\% of the set measuring range (optional: non-linearity better than 0.1\%) – Configurable measuring range with TD 10:1 – Long-term stability better than 0.1\%/year • Deployed for pressure monitoring up to SIL 2 as perIEC 61508/IEC 61511-1 • Sensors– Dry capacitance ceramic sensor (Ceraphire®) for measuring ranges up to 40 bar - overload-resistant, vacuum-proof, stable against alternating load – Piezoresistive sensor with metal diaphragm for measuring ranges up to 400 bar • Output signals: 4 to 20 mA, 4 to 20 mA with HART,PROFIBUS PA • HousingWith its stainless steel housing free of dead space, Cerabar M meets the hygienic requirements of food and pharmaceutical industries. The coated aluminum housing has proven its worth in the process industry. • Device versions in conformity with ASME-BPE
