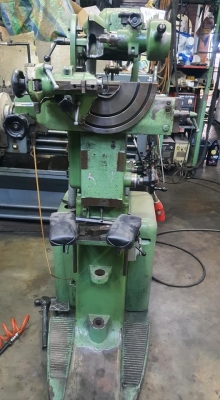

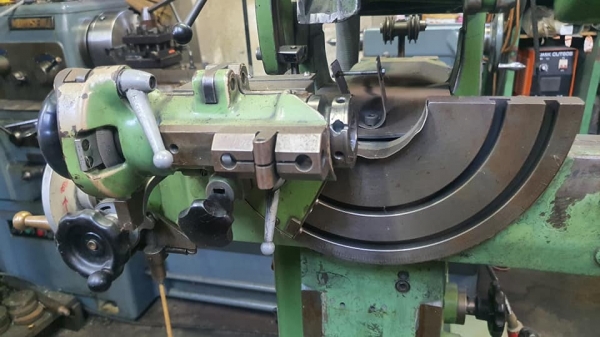

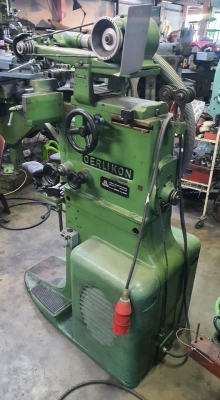

ขายครับขาย universal grinding machine swiss made 35000 บาท

universal grinding machine swiss made 35000 บาท 081458336 เอกครับ

คุณเท่านั้น ที่คู่ควร xxx-xxx-xx76แสดง universal grinding machine swiss made 35000 บาท

Netweight:370 kg

Dimensions:110 x 70 x 145 cm

Wheel speeds:2600-3500-4700-6400-8700 min-1

Manufacturing origin:Swiss

Longitudinal slide, travel:110 mm

Travel of grinding-wheel slide:70 mm

Oscillation radius at the arm stop:150 mm

Vertical slide travel ; setting:60 mm ; 0,01 mm/mark

Power of workpiece motor (1500 t/min):0,25 HP

Collets schaublin w15, with max.cap.dia.:10,5 mm

Power of grinding-wheel motor (3000min-1):0,3 CV

Oscillation radiusin the centre of the wheel:270 mm

Workpiece headstock angular setting precision:6’

Precision of dividing attachment (released teeth):20’

Longitudinal slide, setting by handwheel ; by pedal:0,01 – 0,001 mm

Oscillating travel of arm (in the middle of the wheel):155 mm

Workpiece headstock, max.tilt leftwards ; rightwards:40° ; 100°

Workpiece-holder spindle speeds (continuous), 2 ranges:35-350 and 135-1350 min-1

Number of teeth of dividing attachment (for 3° divisions):120
